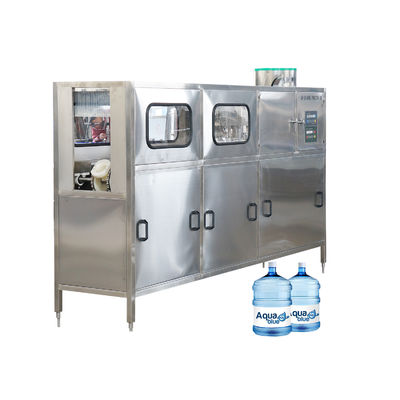

CE 150BPH 5 Gallon Automatic Filling Machines Complete Bottled Water Production Lines
| Place of Origin | Zhangjiagang Suzhou China |
|---|---|
| Brand Name | Huaweishenda |
| Certification | ISO/CE/HACCP |
| Model Number | CGF-150 |
| Minimum Order Quantity | 1 |
| Packaging Details | Wooden packing |
| Delivery Time | 25 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 10sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Packing Type | 3-5gallon Bottle | Voltage | 220v/380v/415v |
|---|---|---|---|
| Station Numbers | Up To 10 Stations | Control System | PLC Control |
| Machine's Frame | SS304 Thickness: 2mm-6mm | Board Material | SS304 Thickness: 2mm |
| Equipment Material | SS304 And SS316 | Operating Air Pressure | 6-10bar |
| High Light | Gallon Filling Machines,Auto Filling Machines,bottled Filling Machines |
||
You can tick the products you need and communicate with us in the message board.
| MODEL | OUTPUT | |
|---|---|---|
| CGF150 | 150BPH |
Product Description
Zhangjiagang CE 150 bph complete automatic water 5 gallon water bottle filling machine
Gallon Filling Machine
Gallon bottle filling machines are manufactured linear or rotary by the capacity and customer’s requirements. Filling process actualized with non contact of the bottle neck. Gallon bottles which transfered to filling machine are centred by the mechanical system and no bottle no filling. Filling pump controlled by the inverter so ensuring different filling speed in different filling level.
Feature:
* Adopt non-contact quantitative filling tech, without water overflow.
* Adopt AISI316L for part in contact with ozone water, no-dead-ends mirror polish technique, guarantee product quality.
* Reserved interface for install 100 class clean room FFU (fan filter unit).
* Adopt Simens PLC control, or same level brand product.
* FESTO air cylinder, or same level brand.
* INOXPA stainless steel filling pump, or same level brand.
* Filling volume accuracy: within ± %0.5 lt.
* Adopt non-contact quantitative filling tech, without water overflow.
* Adopt AISI316L for part in contact with ozone water, no-dead-ends mirror polish technique, guarantee product quality.
* Reserved interface for install 100 class clean room FFU (fan filter unit).
* Adopt Simens PLC control, or same level brand product.
* FESTO air cylinder, or same level brand.
* INOXPA stainless steel filling pump, or same level brand.
* Filling volume accuracy: within ± %0.5 lt.
|
Project
|
3- 5 Gallon Water Bottling Machine
|
|||||
|
Model
|
QGF-100
|
QGF-300
|
QGF-450
|
QGF-600
|
QGF-900
|
QGF-1200
|
|
Capacity (BPH)
|
100
|
300
|
450
|
600
|
900
|
1200
|
| Filling Heads |
1
|
2
|
3
|
4
|
5
|
6
|
|
Air press(Mpa)
|
0.37
|
0.6
|
0.8
|
1
|
1.5
|
2.0
|
|
Power supply
|
1.38KW
|
3.8 KW
|
5.6KW
|
7.5 KW
|
9.75KW
|
12 KW
|
|
Overall dimension
|
3700×1300×1600
|
4060×1860×1600
|
5000×1500×2200
|
5400×2600×2200
|
8500×6000×2500
|
9000×6500×2800
|
|
Weight (KG)
|
680
|
1500
|
2100
|
3000
|
3500
|
4000
|
