RFC Automatic Juice Filling Machine 200ml Small Scale Juice Bottling Equipment

Factory price automatic juice bottling machine filling machine line 2000-36000BPH hot juice filling machine

Juice filling machine

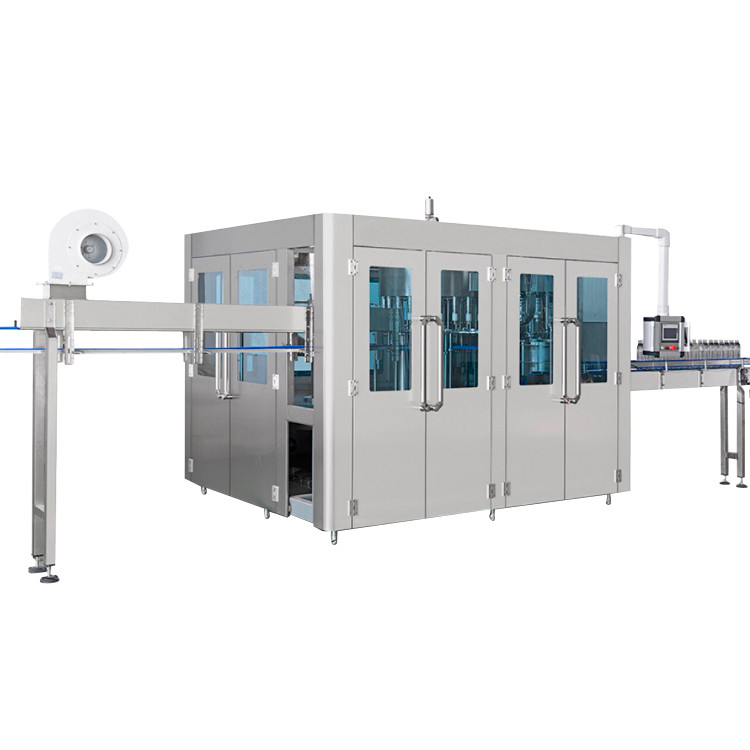

We offer fully automatic rotary monoblock rinsing filling capping machine for hot juice, beverage, tea with or without particulates configured of 3 in 1 integrating bottle rinsing, liquid filling and capping into one and 4 in 1 integrating bottle washing, particulates dosing, liquid filling and capping into one.

Hot fill is a process where the product is heated and filled at a high temperature to sterilize the product and thecontainer and closure. Hot fill is relatively inexpensive and appropriate for non-carbonated beverages and liquid food products such as fruit and vegetable juices, nectars, soft drinks, enhanced water and teas. Hot fill products have a shelf life ranging from 6-12 months. The principle of operation is similar to the gravity-low vacuum system, however the machine and its filling valves are designed to allow product recirculation in the tank and in the filling valves themselves in order to keep the constant filling temperature even in the eventuality of a machine stop. With the hot fill technology it is possible to fill at 90°C, guaranteeing a constant filling temperature, filling level accuracy and total product recycling.

Key Features

*Integrate bottling rinsing, filling and capping into one to help you save space.

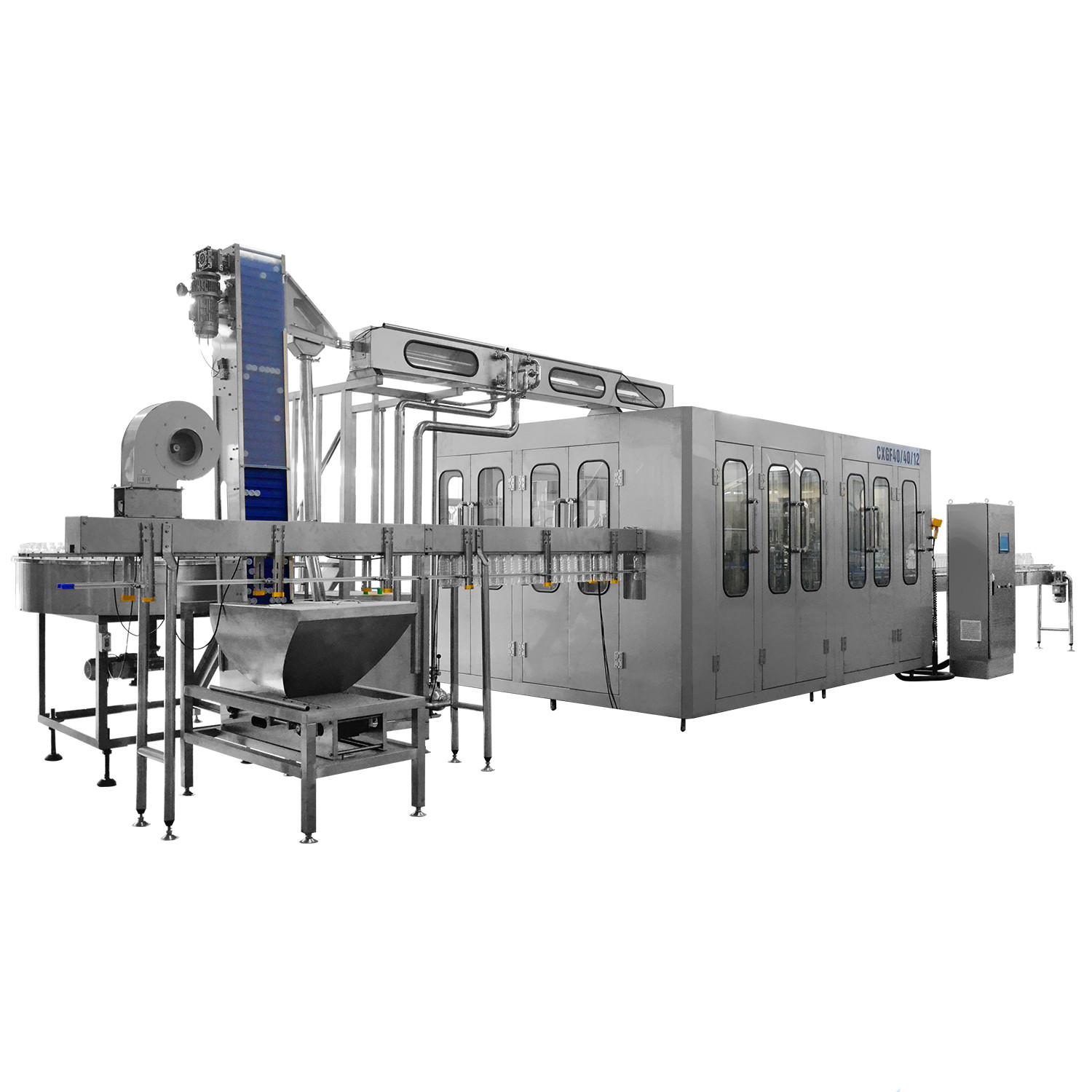

*Including bottle air conveyor, 3 in 1 monobloc rinser-filler-capper, discharge conveyor and cap elevator.
*All parts that contact the bottle and liquid are made of stainless steel or food grade plastic material.
*The sturdy base is supported by four feet and is made with stainless steel sheathing secured to the tubular frame.
*All drive train components located inside machine base to be protected from aggressive environment, extended life, clean and unobstructed cabinet surface.
*Bottles are rinsed internally.
*Precise and accurate hot filling valves give even filling in all bottles at the same level, No bottle, No filling.
*Magnetic capping head eliminates over-tightening of caps, No bottle, No capping.
*PLC control and friendly touch screen HMI interface.
*Adjustable speed by inverter.
*Fast and easy changeover to various bottle sizes.
*Unique design bottle neck suspend system makes bottle move smoothly.
*Easy to operate,clean and maintain.
