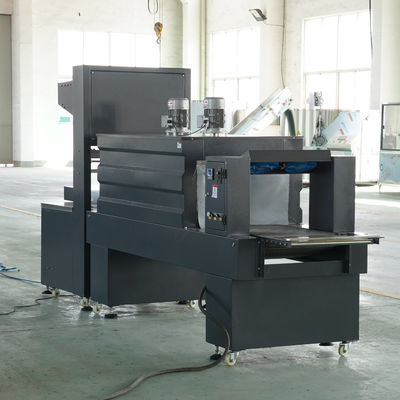

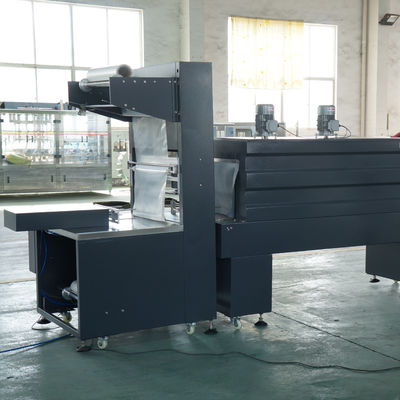

Semi Automatic Shrink Wrapping Machine 600mm Width 5-8 Packs/Min
| Place of Origin | JIANGSU CHINA |
|---|---|
| Brand Name | HAUWEISHENDA |
| Certification | ISO/CE |
| Model Number | MB-1100 |
| Minimum Order Quantity | 1 |
| Packaging Details | Wooden case |
| Delivery Time | 25 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 15 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High Light | Semi Automatic Shrink Wrapping Machine 600mm,Shrink Wrapping Machine 600mm Width,8 Packs Shrink Wrapping Machine |
||
|---|---|---|---|
Product Description
Semi Automatic Film Shrink Packing Sleeve Shrink Wrapping Packaging Machine With Shrink Tunnel
Semi automatic/manual bottle shrink wrapping machine is designed for small operations and startup companies, low cost, easy to use and widely used to wrap a wide variety of packs either as individual packs(e.g.,carton) or as collations(e.g.,bottles,cans,jars,boxes,etc.) into their respective formats (either 4 bottles x 6 bottles(1/2 liter) or in other packaging configurations such as the 3 x 4, 1-liter arrangement to be wrapped unsupported, pad-supported or tray-supported. Each shrink wrapping system comes with bundler, shrink tunnel and discharge conveyor.
With a semi automatic/manual shrink wrapping machine for bottles, The products are positioned in the front of the pneumatic infeed pusher by hand, a button is pressed which starts the wrapping cycle, the collated product is then pushed to sealing and cutting station by air cylinder. Shrink wrapper machine commonly use two reels of film which are joined to form a web, one reel is mounted at high level and the other is mounted at a low level. The product to be wrapped is passed through the web. The sealing bar descends to seal and cut the film to form an envelope around the package leaving two open ends at the sides.
After sealing, the next product to be wrapped then pushes the wrapped product into the heat shrink tunnel where recirculated hot air causes the wrapped products to shrink and tightly confirm to the contours of the contents. Once the pack is out of the chamber, forced air cooling is used to tighten the sleeve wrap to achieve a strong, secure pack ready for stacking on a pallet or placing in a shipping carton.
Sleeve Wrapper Features
*Heavy duty frame construction made on painted steel tube
*Wheels and height adjustable legs for transport and positioning
*Flexibility to wrap trayed and trayless packs
*Accepts a package size of 500mm(W) X 350mm(H)
*Adjustable pusher assembly with two hand start switches
*Adjustable product hold down device to press containers of different height
*Adjustable product clamp and dead plate for containers of different diameter
*Convenient controls for easy set up
*600mm flat maximum shrink film width
*Unique heavy duty specially profiled sealing jaw for consistently strong seals
*Teflon coated sealing blade
*Easy to use and maintain
Shrink Tunnel Features
*Heavy duty welded steel frame with adjustable height
*Wheels and height adjustable legs for transport and positioning
*Insulated shrink tunnel chamber
*Stainless steel heating elements for long life
*Shrink tunnel opening is 550cm(W) X 400mm(H)
*Adjustable conveyor speed
*Adjustable temperature control
*Dual blower design with adjustable air flow
*Durable and non-stick teflon mesh conveyor belt
*Tunnel discharge cooling station for fast film curing
*Discharging idle roller conveyor for accumulation and easy transportation
Technical Specifications
| Packing Speed | 5-8Packs/Min |
| Max Pack Size | 500(W)x350(H)mm |
| Applicable Film | Polyethylene(PE) Film |
| Max Film Thickness | 100Micro |
| Shrink Wrapper | |
| Max Film Width | 600mm |
| Sleeve Wrapper Electric Supply | 220V 50/60HZ 1PH 1.50KW |
| Top Film Feeding Motor | 220V 50/60HZ 1PH 25W |
| Bottom Film Feeding Motor | 220V 50/60HZ 1PH 25W |
| Sleeve Wrapper Dimension | 1040x930x1930mm |
| Sleeve Wrapper Weight | 200kgs |
| Shrink Tunnel | |
| Shrink Tunnel Opening | 550mm(W)x400mm(H) |
| Shrink Tunnel Heater | 380V 50/60HZ 3PH 18.40KW |
| Conveyor Motor | 220V 50/60HZ 1PH 90W |
| Reciriculation Blower | 220V 50/60HZ 1PH 120W(60Wx2) |
| Shrink Tunnel Chamber | 1500x550x400mm |
| Shrink Tunnel Dimension | 2500x800x1480mm |
| Shrink Tunnel Weight | 360kgs |
| Idle Roller Conveyor | |
| Dimension | 1200x550x720mm |
| Idle Roller Weight | 60kgs |
